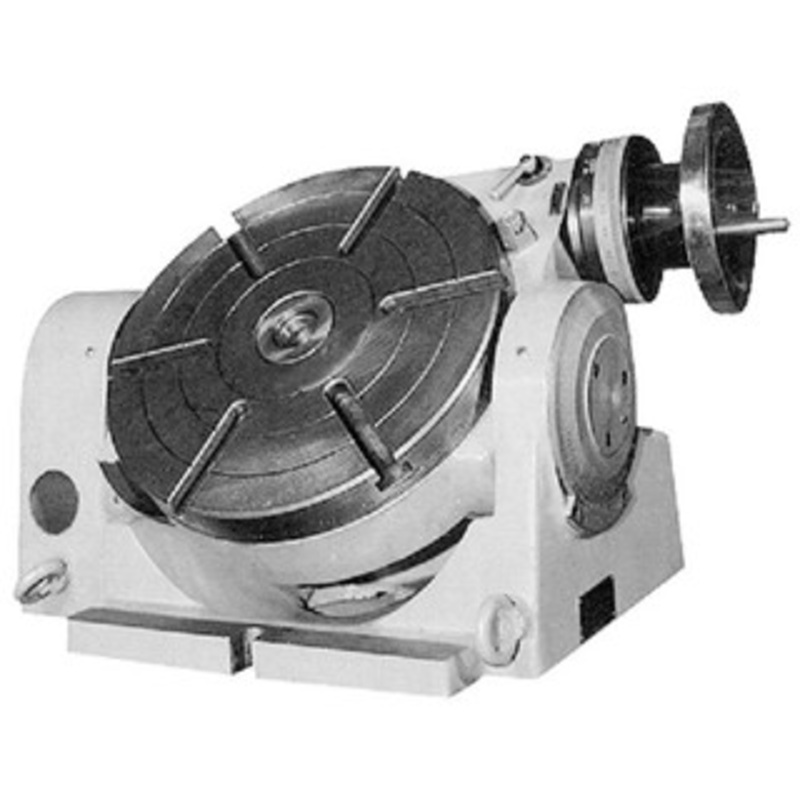

Phase II Tilting Rotary Table, 10″ – 222-410

ULTRA PRECISION!

TWO YEAR WARRANTY!

• HIGH PRECISION BEARING SURFACES INSURE ULTRA-SMOOTH ROTATION.
• SUPERIOR GRADE MEEHANITE CASTINGS PROVIDE THE ULTIMATE RIGIDITY.
• ALL ROTARY TABLES ARE PRECISION GROUND TO MEET THE MOST EXACTING REQUIREMENTS AND ARE INDIVIDUALLY SUPPLIED WITH A CERTIFICATE OF INSPECTION.
• THE ENGRAVED GRADUATIONS ARE BOTH CRISP AND CLEAR, ELIMINATING ERRONEOUS READINGS.
• LOW PROFILE DESIGN MINIMIZES MACHINE CAPACITY LOSSES WITHOUT SACRIFICING WORK LOAD CAPACITY.
• T-SLOTS ARE MACHINED WITHIN ACCEPTABLE TOLERANCES.
• WORM GEAR IS IS EASILY DISENGAGED FOR FREE ROTATION.
• LONG LIFE AND CONTINUED ACCURACY IS ASSURED BY A CONVENIENT ADJUSTMENT TO COMPENSATE FOR WEAR.
• ALL ROTARY TABLE PARTS ARE STRATEGICALLY POSITIONED FOR EASY ACCESS.
• THE ONE PIECE WORM AND SHAFT ARE HOBBED FROM A SOLID ALLOY STEEL.
• SPECIAL DESIGN FEATURES
  • TWO YEAR WARRANTY
  • EXTRA DEEP COOLANT CHANNEL
  • 10 SECOND VERNIER READING
  • DUAL POSITIVE ACTION LOCKS
  • GRADUATED 360 DEGREES
  • LOW PROFILE
  • GEAR DRIVE IMMERSED IN OIL
  • 90:1 GEAR RATIO
  • OPTIONAL DIVIDING PLATES AND TAILSTOCK
  • Ships by truck only
