PM ResearchSteam Engine #3

Product DescriptionSKU: 3BIM

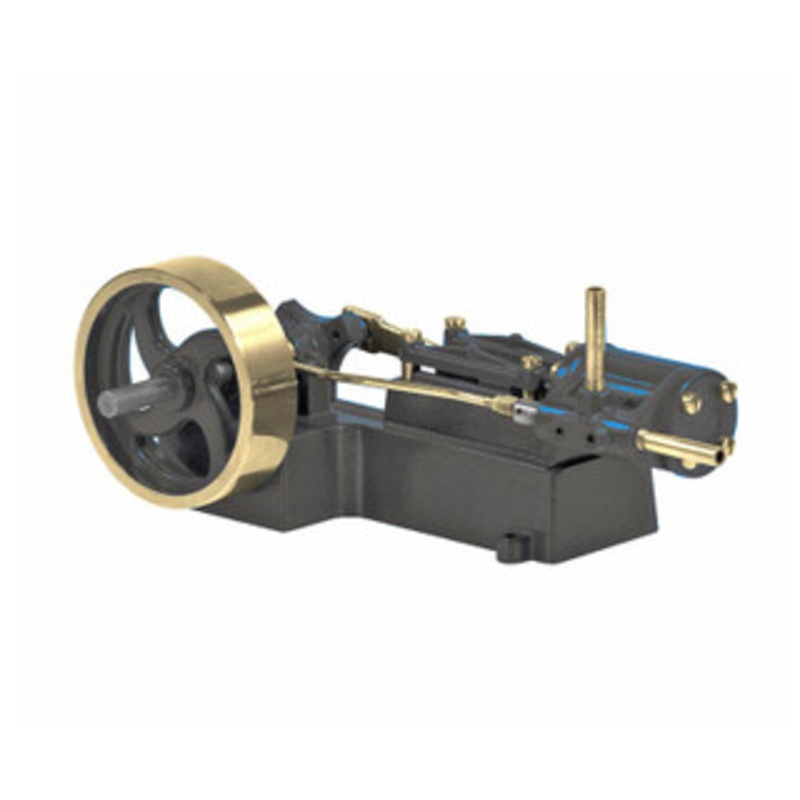

WORKING REPLICA STATIONARY STEAM MILL ENGINE

This engine is similar to those used to provide line shaft power tofactories and mills in the 1800s. The line shafts conveyed the powerto machinery via pulleys and flat leather belts.With a 2-1/4 inch flywheel and an overall length of 6 inches, this kit willmake a great project for the machinist with a small lathe.The casting kit isavailable with either aluminum castings, or bronze & iron castings. Either way, allhardware, gasket material, bar stock, and 9 sand castings plus completeworking drawings are included.Machining and assembly required.

The bronze iron kitis alsoavailable fully machined for easy assembly if you desire.

• Bore: 1/2
• Stroke: 3/4
• Double Acting
• Flywheel Diameter: 2-1/4
• Overall Length: 6
