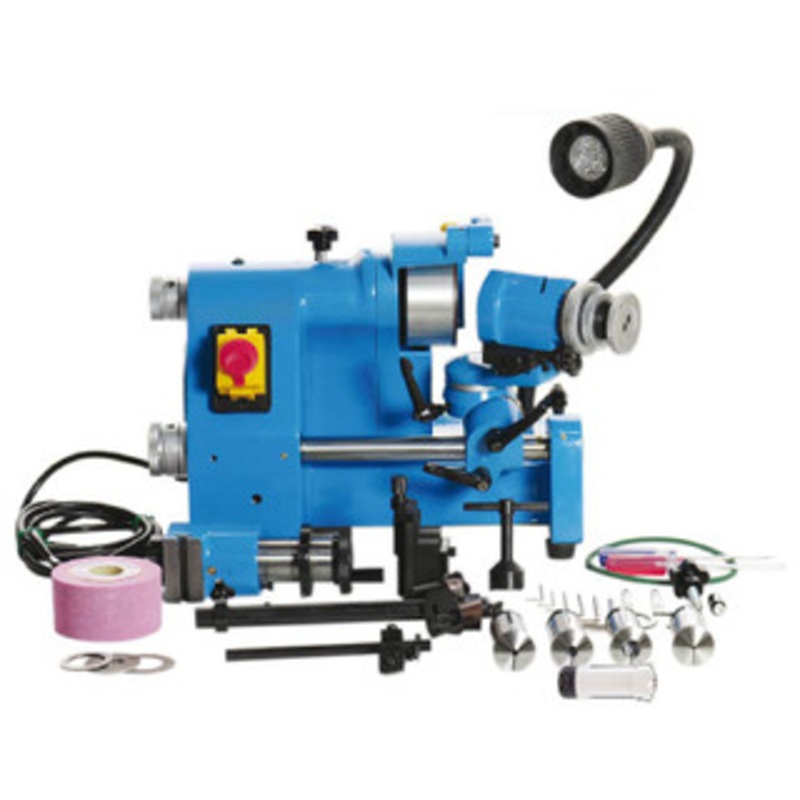

Precise Universal Cutter Sharpener

For grinding HSS and carbide engraving cutters as well as single lip or multiple lip cutters of various shapes such as radius cutters or cutters with a negative taper angle.

The universal index head is provided at 24 positions so that any particular angle of shape can be obtained, free 360 is allowed for grinding End Mills, Twist Drills, and Lathe Tools. Only exchange the attachment of the index head; no complex setup needed.

Features:

• Both the spindle and the rail are micro-adjustable to 0.0005″ with easy to read laser marked lines on the vernier
• 24 point positions in 15 degree increments can be indexed at the tool holder’s scale indexer when the release lever is pull into the right side position as shown in the photo below
• Smooth rotary movement on each joint to facilitate the grinding process on those necessary relief angles
• Runout < 0.0005" on the main grinding spindle to ensure precise grinding
• Multiple attachment accessories are included to enable sharpening end mills, drill bits, carbide tipped lathe tools, reamers, and punches

• This grinder uses a special grinding motor, built-in custom bearings, and seals which provides it with a longer motor life and allows it to run more soundlessly than other ordinary grinders.
• Solenoid switch has been used which ensures in cases of a sudden power outage, power phase loss, or other emergency situations that the switch will lose power first and protect the safety of the motor in order to improve electrical safety.
• All Grinders handles use adjustable handles which have more flexibility
• All Grinders main parts are manufactured to exact technical requirements. Through multiple heat treatment processes, the grinder’s durability and accuracy is greatly improved.
• Each Grinder has to pass German quality standards and large quantities are exported to European markets
• The universal clamp assembly is the most important part to ensure the grinders precision. The runout of tapered bore is less than 0.0098 mm and each grinder’s runout is inspected before being sent from the manufacturer.
• Each Grinder has a manual and stamped factory certificate. The manufacturer is ISO 9001 certified. Also, there is a serial number on each box which can traced to the original information about each grinder.

What’s Included:

• End mill & reamer sharpening attachment
• Twist Drill bit sharpening attachment
• Lathe tool sharpening attachment
• 5C collets: 1/8″, 1/4″, 3/8″, 5/8″, 1/2″
• 4″ x 1-1/4″ 320 Grit diamond grinding wheel with 1-1/4″ bore for grinding carbide
• 4″ x 2″ 80K Grit silicone-carbide straight-up cup wheel for grinding high speed steel
• Halogen work Light
• Diamond tipped wheel dresser
• Spare drive belt
• Wrench for mounting the diamond wheel

Optional Accessories:

• # 2257 – Straight Cup Wheel 80k grit 5300 max RPM. 4″ x 2″ x 1-1/4″ Arbor
• # 2256 – Diamond Grinding Wheel 320 grit, 4″ x 1-1/4″ x 1-1/4″ Arbor
• # 3103 – 1/4″ x 3″ Diamond Dresser

Specifications:

Motor 1/3 HP, 1-Phase 110 Volt, 3340 RPM, 3.58 APM Motor Spindle Speed 5000 RPM Cup Wheel 4″ x 2″ Straight-Up Style with 1-1/4″ Bore 80K Grit Diamond Wheel 4″ x 1-1/4 with 1-1/4″ Bore 320 Grit Tool Post Longitudinal Travel 5.5″ Micro-adjustment Resolution 0.0005″ Taper Angle 0-180 Degree Relief Angle 0-40Degree Negative Angle 0-52Degree Swing Stop 0-180Degree 5CCollet Clamping Capacity 1/16″ – 1″ Included 5C Collet Size 1/8″, 1/4″, 3/8″, 1/2″, 5/8″ End Mill Cutter Up to 5/8″ Diameter (at time of delivery) Drill Bit Up to 15/32″ Diameter Turning Tool Up to 13/16″ x 13/16″ Single Edge Milling Cutter Up to 15/32″ Diameter (at time of delivery)
