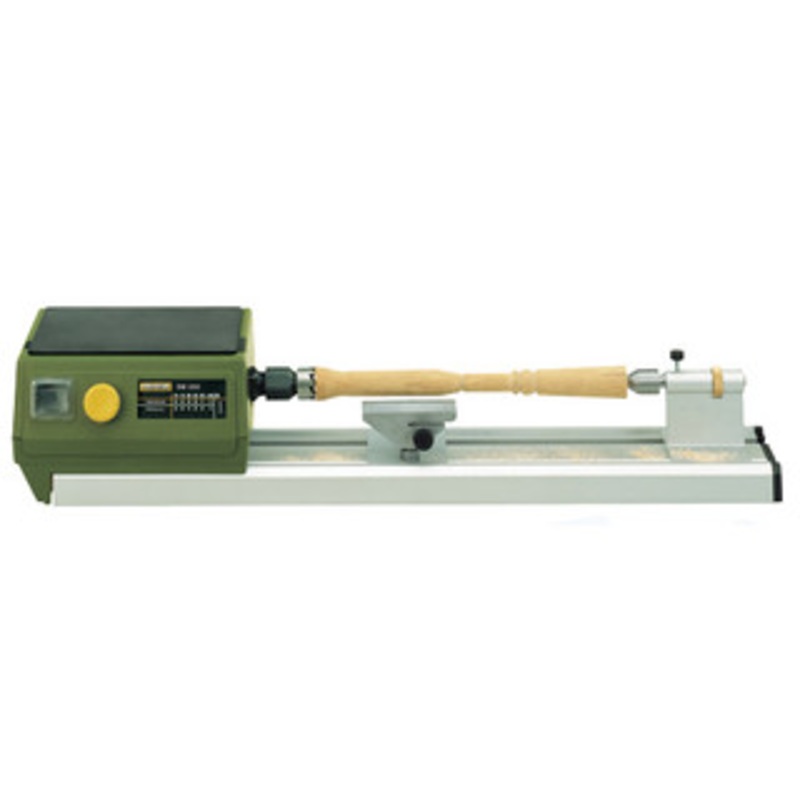

Proxxon MICRO Woodturning Lathe DB 250 – 37-020

Turning in miniature is a pleasing hobby. One can make glasses, cups, saucers, vases and columns for a doll house. In model trains, one can make lighting masts, windows, tanks. Limbs for marionettes and hundreds of classical miniature turning tasks may be carried out with ease.

• Powerfull, high torque drive with variable speed 1,000 – 5,000rpm.
• Stable lathe-bed made of thick aluminum profil material.
• Ball bearing spindle is bored through at 13/32″ (10mm). For series production of small parts.
• Square carrier with back centre and 13/32″ (10mm) shaft.
• The stable tool rest is adjustable in all directions.
• Tailstock with quill travel.
• A face plate (for turning larger work pieces) is included.

Technical data:
Motor 110 – 120V AC, centre distance of 10″ (250mm), 1 3/5″ (40mm) swing. 1″ (25mm) swing over support. 1/8 hp (100W), 60Hz. Variable speed control covering between 1,000 and 5,000rpm. Headstock spindle bore of 13/32″ (10mm). Tailstock travel 1 3/16″ (20mm). Includes 6 collets 5/16″, 1/8″, 5/32″, 15/64″, 5/16″, 13/32″ (2 – 3 – 4 – 6 – 8 – 10mm), drive center, live center and face plate.
