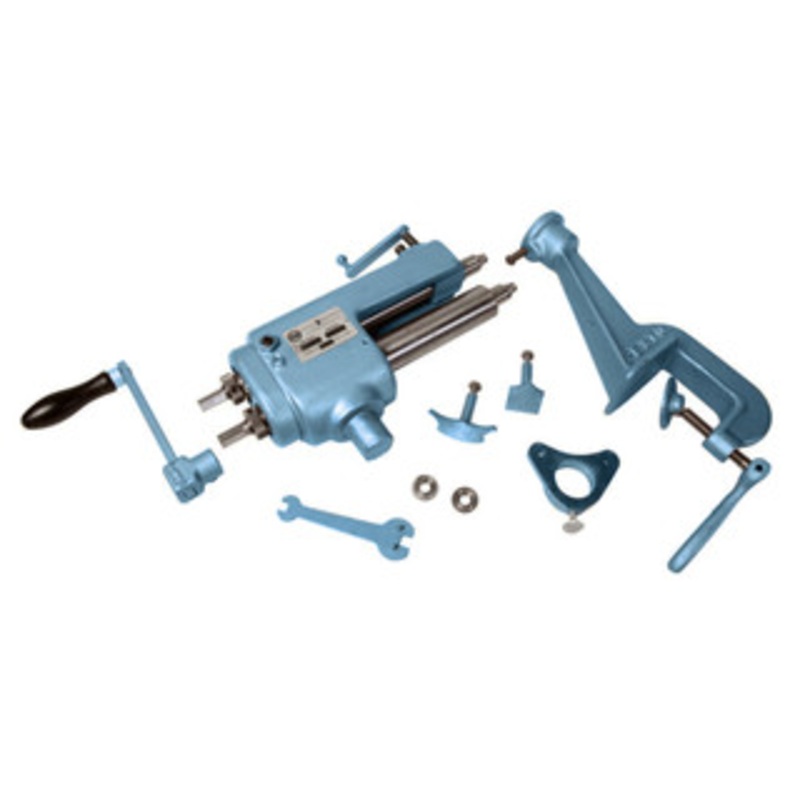

Roper Whitney Combination Rotary Machine No. 622LR

Less Rolls.

*Rolls Not Included

Combination Rotary Machine No. 622 Series

The No. 622 Series is equipped with the addition of a 7″ deep throat for additional forming capabilities, such as furnace collar edging. The Model No. 622 includes a set of rolls (A, C, D, E & F) and gauges or may be ordered without rolls as Model No. 622LR*. A number of rolls may be ordered separately from the roll chart to use with this machine.

No. 622 Series machines include No. 975 clamp-on offset base.
* Other versions available with rolls for specific purposes.

Specifications No. 622LR Maximum capacity, mild steel 24 ga. / 0.61mm Throat Depth 7 in. / 178mm Distance between shaft centers 2 in. / 51mm Ratio gearing 1 : 1 Shipping Weight 50 lbs. / 23kg

Ordering Guide:

Description Item No. Weight (Lbs.) No. 622LR Combination Rotary Machine
without rolls. Includes throat gauges and extension gauge, with bench base 164006220 45
