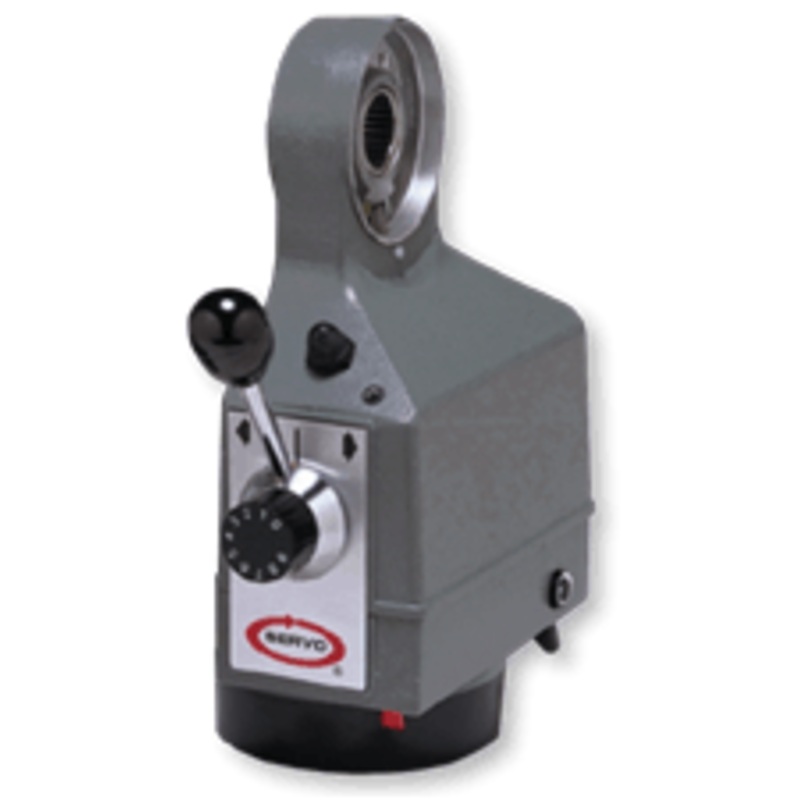

Servo Power Milling Table Feed, 140 lbs. Torque, 12″ Cross “Y” Feed – 250-140

*Please note this will only fit Bridgeport Machines built before the year 2010

• Higher Torque than competitive models.
• Controlled feed rate.
• Smooth finish, regulated control eliminates most second finish cuts.
• Automatic shutoff at the end of a cut with electric limit switches.
• Superior thermal characteristics for higher loading.
• Easy installation with mounting hardware kits for more than seventy mills.
• Trouble-free performance, lightweight motor minimizes table deflection problems; safety clutch with limit switch design eliminates damage to lead screw or feeds if a hard stop is encountered.

Specifications:

Servo Model No:M-0250-140 Semi-automated machining on Class 1 mills to 3 hp. Helical gearing and torque limiting friction safety clutch with new and improved gear. Peak Torque
(half-wave series motor) to 140 in.- lb. / 15.8 NM torque Intermittent Torque 105 in.- lb. / 11.9 NM Continuous Torque 90 in.- lb. / 10.2 NM Variable Feed Rate .75-25 IPM / 19-635 mm/min (table & cross)
.5-12 IPM / 13-305 mm/min (knee) Rapid Traverse 35 IPM / 889 mm/min (table & cross)
12 IPM / 305 mm/min (knee) Gear Reduction Ratio
(motor to screw shaft) 72:01:00 Electrical 110V, 50/60 Hz, 2.5A. Approx. weight 15 lbs. / 6.8 kg.
