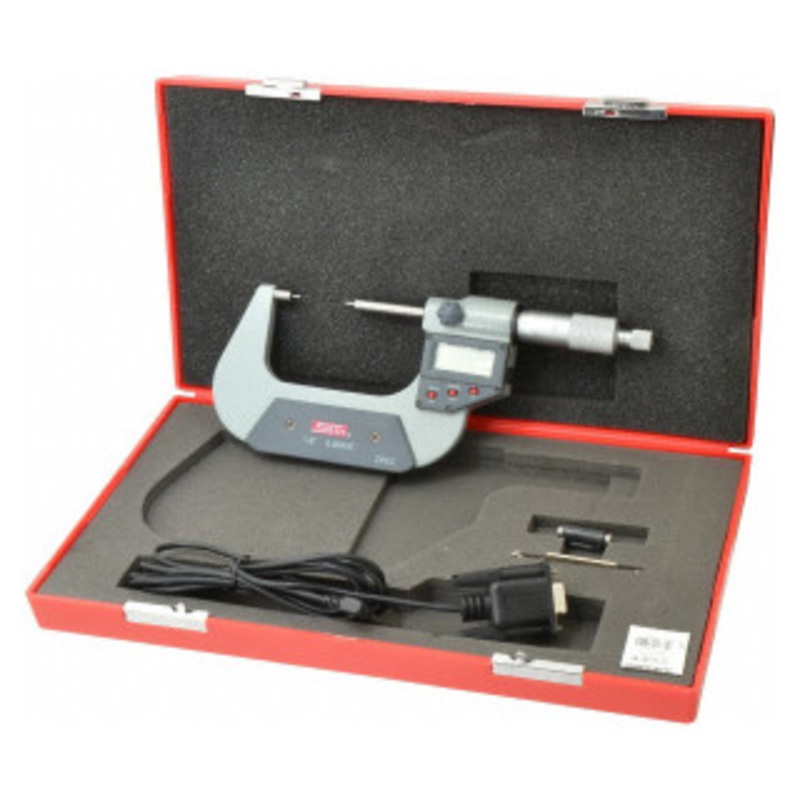

SPI IP65 Electronic Spline Micrometer, 1-2″/25-50mm – 13-831-3

• Carbide measuring faces offered in two different diameters for measuring spline shafts, slots and keyways.
• Standard included in 1-2″ range.
• SPC output- cable included.
• Main spindle dia.: 0.250″.
• Resolution: 0.00005″/0.001 mm.
• Accuracy: 0.00016″
• Inc./ abs/ inch/ metric measuring.
• Ratchet thimble.
• Spindle lock.
• Certified of calibration traceable to NIST.
• Furnished in fitted case.

1 to 2 Inch, Electronic Spline Micrometer

Type Spline Measuring Range 1-2″ / 25-50 mm Spindle Diameter 0.079″ / 2 mm Resolution (Inch) 0.00005″ Resolution (mm) 0.001 mm Thimble Type Ratchet Stop Accuracy 0.0002″ Display Type LCD Data Output Yes Includes Certificate of Calibration Traceable to NIST SPI Part Number 13-831-3
