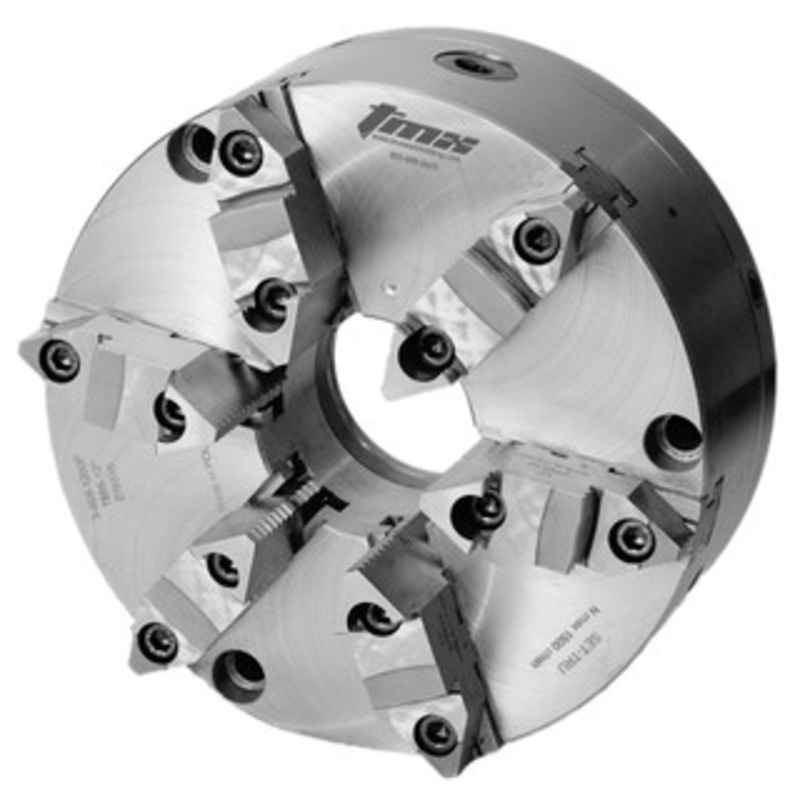

TMX 6-Jaw (2pc) SET-TRU Self-Centering Scroll Chuck with Fine Adjustment, 10in – 3-868-1000P

6-Jaw SET-TRU Forged Steel Body Scroll Chuck
with Two-Piece Hard Reversible Jaws

Plain Back, 10in

TMX by Toolmex MADE IN EUROPE
(Compare to Bison Models 3864 & 3865 – series 7-868)

Designed for Performance

• Outstanding accuracy and quality, our solid steel body SET-TRU chucks can be used for all machining where standard scroll chucks are used, along with applications where tighter tolerances are required.
• Chuck bodies hardened to 28 HRC, jaws hardened to 50 HRC, 4 micro adjustment screws for fine adjustment, and 0.0006″ TIR repeatability make for a very rigid, reliable and accurate system.
• Due to the increased rigidity, accuracy and optimal wear behavior, our chucks can handle rough as well precision machining demands while extending the life of cutting tools and machines.

Features:

• 0.0006″ T.I.R. Repeatability
• SET-TRU features fine adjustment with 4 micro adjustment screws for outstanding repeatability
• 16″, 20″ and 25″ diameter chucks with 3 jaws and 6 jaws use 8 micro adjustment screws achieving extremely high gripping concentricity

Standard Accessories:

• 1 Set of hard master jaws
• 1 Set of hard top reversible jaws
• 1 Chuck wrench
• 1 Set of mounting bolts
• 1 Set of fine adjustment screws
• Eye bolts for chuck sizes 16″ and larger

Optional Accessories:

• TMX Fully Machined Type D1 Steel Backplates for SET-TRU Chucks
• TMX Fully Machined Type A Steel Backplates for SET-TRU Chucks

Technical Data:

Selling Unit EA Chuck Type SET-TRU Scroll Chuck Size in 10 Body Material Forged Steel Number of Jaws 6 Jaw Type 2pc Weight lb 81 Mount Type Front Gripping Force daN 4600 Max RPM RPM 2400 Diameter D in 9.843 Recess Diameter B in 5.709 Recess Depth C in 0.787 Hole Diameter E in 2.992 Bolt Circle F in 8.819 Body Height H in 4.291 Jaw Height H1 in 2.051 Number of bolts
and thread size S 3 x M12 d1 Solid Jaws in 0.47 – 4.65 d1 Two-Piece Jaws in 0.47 – 4.65 d2 Solid Jaws in 3.23 – 7.40 d2 Two-Piece Jaws in 3.23 – 7.40 d3 Solid Jaws in 6.50 – 9.84 d3 Two-Piece Jaws in 6.46 – 9.84 d4 Solid Jaws in 2.68 – 6.85 d4 Two-Piece Jaws in 2.68 – 6.85 d5 Solid Jaws in 5.91 – 10.08 d5 Two-Piece Jaws in 5.91 – 10.08

See all TMX 6-Jaw (2pc) SET-TRU Self-Centering Scroll Chucks with Fine Adjustment
