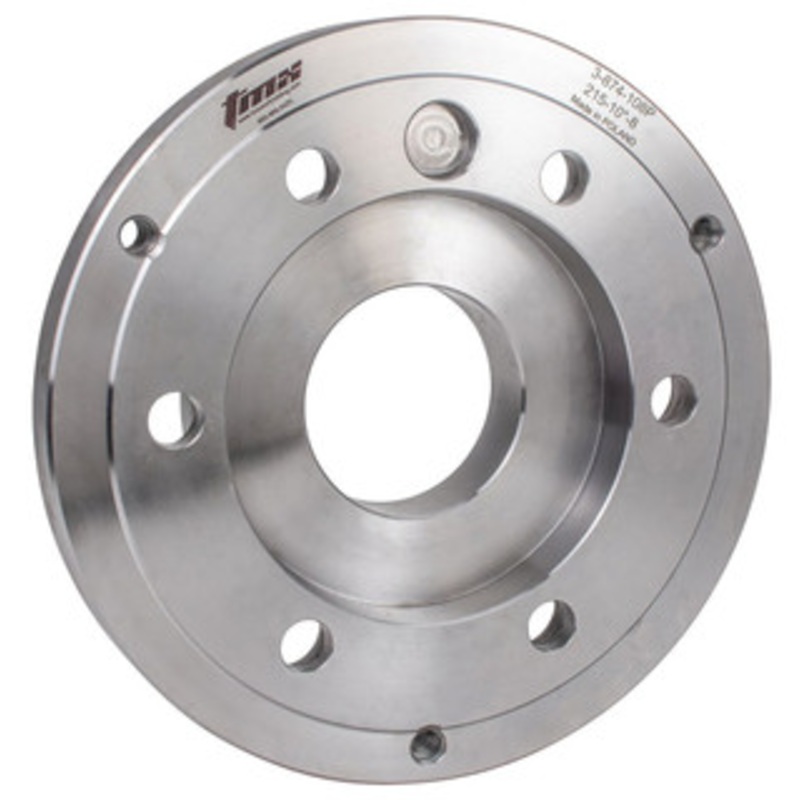

TMX Fully Machined Type A Steel Backplate for SET-TRU Chucks, 5in A2-6 – 3-874-056P

• Designed to mount on A2 American Standard Spindles

Technical Data:

For use with Chuck Size 5 in For use with Chuck Type SET-TRU Spindle mount A2-6 Machined Fully Finished Weight 7.7 lbs. (3.5 kg) A in(mm) 6.378 (162) B in(mm) 1.772 (45) B1 in(mm) 0.551 (14) C in(mm) 2.165 (55) D in(mm) 4.188 (106.375) E in(mm) 1.378 (35) F in(mm) 5.252 (133.4) Chuck Mounting Holes G M8 H in(mm) 4.252 (108) K in(mm) 0.551 (14) Spindle Mounting Bolts N M12 Number of Bolts 6

See all TMX Fully Machined Type A Steel Backplates for SET-TRU Chucks
