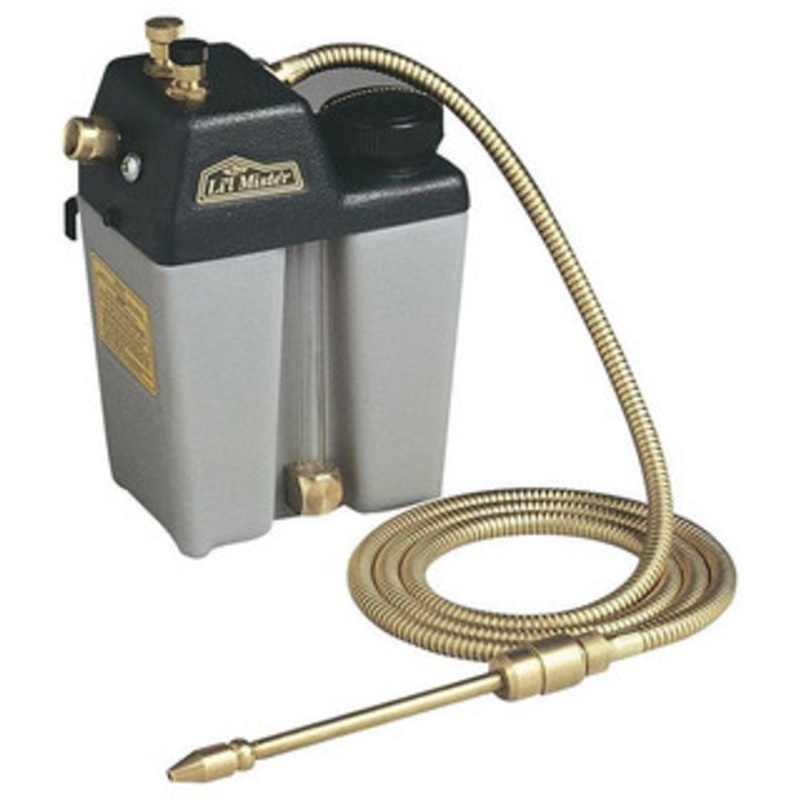

Trico Li’l Mister Spray Coolant Unit #30541
with Armored Line

for Light Duty Machining Operations & Tool Room Applications

Spray Coolant System:

• Acrylic plastic sight, brass valves and fittings, buna-N o-ring, polyurethane coolant tube, 40 x 40 mesh stainless steel filter
• Includes an easy to mount bracket for permanent attachment to the machine tool
• Nozzle designed so atomization takes place at nozzle tip an instant before delivery, eliminating sputtering and enhancing pattern control
• Operates on 50 – 100 PSI inlet pressure
• An easy to read liquid level gauge indicates spray coolant level at a glance
• Air and coolant are independently controlled by solid brass precision needle valves
• Lifetime warranty on manufacturing defects

Benefits:

• Easy reading sight gauge.
• Easy mounting bracket.
• Independent air/coolant adjustability.

Features:

• 5′ plastic or brass armored line.
• One quart reservoir capacity.
• Size: 8-1/2″H x 5-1/4″W x 4″D

Specifications:

BRAND TRICO MODEL # 30541 NO. OF LINES 1 CAPACITY 1/4 Gallon TYPE Misting Coolant System with Armored Line DEPTH 4″ HEIGHT 8-1/2″ LENGTH OF LINE 5′ SIZE 8-1/2″H x 5-1/4″W x 4″D PROP. 65 Yes WEIGHT 2 lbs. WHEEL DIAMETER 5-1/4″ WIDTH 5-1/4″ COUNTRY OF ORIGIN UNITED STATES OF AMERICA
