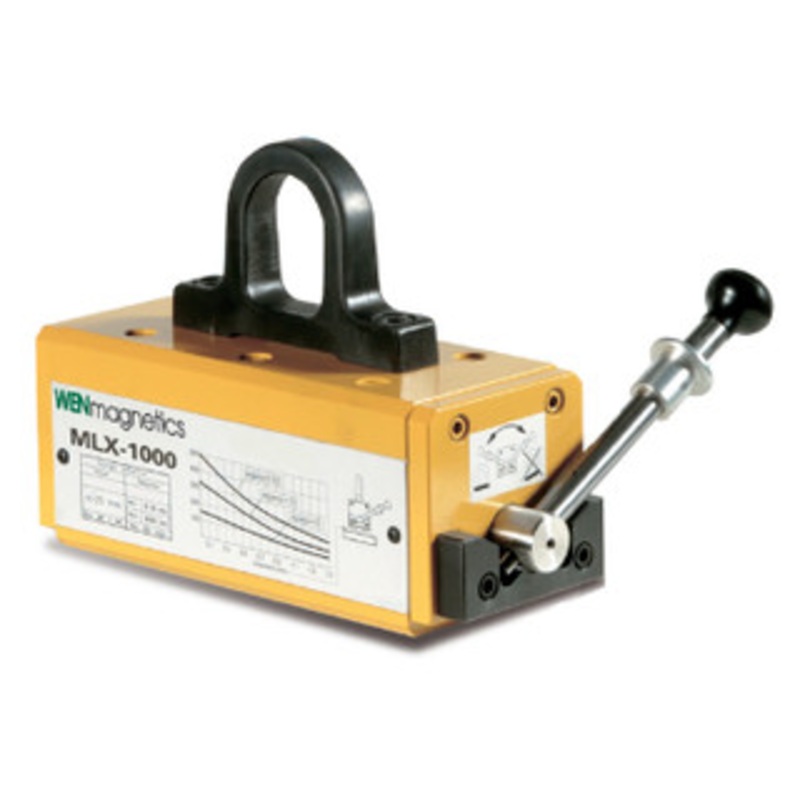

WENmagnetics MLX Permanent Magnet Lifter
MLX-1000

For lifting flat or round loads

• Two-pole design with prismatic contact surfaces and rare earth magnets give great penetration power, even with rough contact surfaces.

• Lever actuation with safety latch in both positions, magnetized and unmagnetized and designed to be operated with one hand.

• Safety coefficient 3 – the measured break-away force is 3 times higher than the rated “safe working load” force.

• Easy to handle thanks to its low weight – breakaway force from 80 to 115 times its own weight.

• Easily maintained with re-grindable pole contact feet and a maintenance free mechanism.

• The rare earth Neodymium (NdFeB) magnets incorporated in these lifting magnets guarantee a long magnet life under normal working conditions.

Features:

• Utilizing the incredible power of rare earth magnets to ensure optimal capacity with small size and weight
• Standard 3:1 safety rating complete with test certificate
• Prismatic pole feet allows lifting of both round and flat loads
• Fully switching On and Off with hand actuation
• No power required for complete safety and flexibility
• Durable design can be actuated single-handed

Specifications:

Item No. Rated Capacity Flats Rated Capacity Rounds MLX-250 550 lbs 220 lbs MLX-500 1,100 lbs 550 lbs MLX-1000 2,200 lbs 1,100 lbs MLX-2000 4,400 lbs 2,200 lbs Model MLX-250 MLX-500 MLX-1000 Load flat 550 lb. 1100 lb. 2200 lb. Load round 220 lb. 550 lb. 1100 lb. Min./Max. Diameter 2.0″ / 13.8″ 2.5″ / 15.7″ 3.2″ / 15.7″ Detachment force* 1750 lb. 3575 lb. 7825 lb. Dimensions: A 7.40″ 10.31″ 14.17″ B 3.15″ 3.94″ 5.51″ C 2.95″ 3.74″ 5.31″ D 5.98″ 7.28″ 9.25″ Weight 15 lb. 35 lb. 88 lb.

Click to view the User’s Manual
