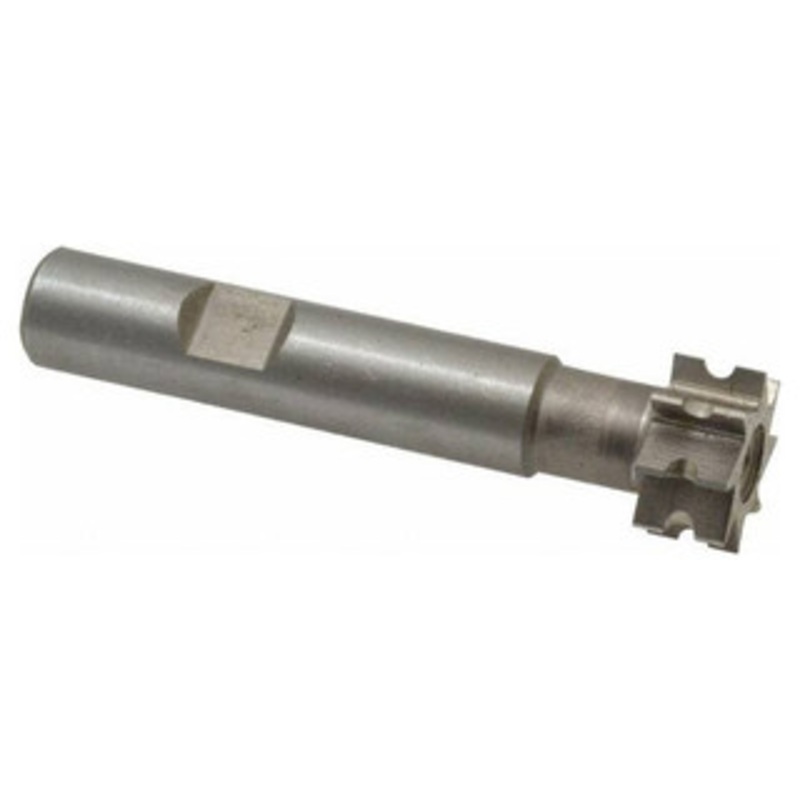

Whitney Tool Concave Radius Milling Cutter #10361, 1/16″ Radius

1/16″ Radius, 1/8″ Circle Diam, 3/4″ Cutter Diam, 3/8″ Cutting Width, Shank Connection, Concave Radius Cutter
1/2″ Shank Diam, 3″ OAL, High Speed Steel, Uncoated, Profile Ground, 8 Teeth, Weldon Flat

Features:

• Made in U.S.A.
• Precision ground
• More teeth for faster cutting
• Better finish possible in many materials with profile ground

Specifications:

Connection Type Shank Radius (Inch) 1/16 Circle Diameter (Decimal Inch) 0.1250 Diameter of Cutter (Inch) 3/4 Cutting Width (Inch) 3/8 Cutting Width (Decimal Inch) 0.3750 Shank Diameter (Inch) 1/2 Overall Length (Inch) 3 Material High Speed Steel Finish/Coating Uncoated Relief Style Profile Ground Number of Teeth 8 Weldon Flat Yes
