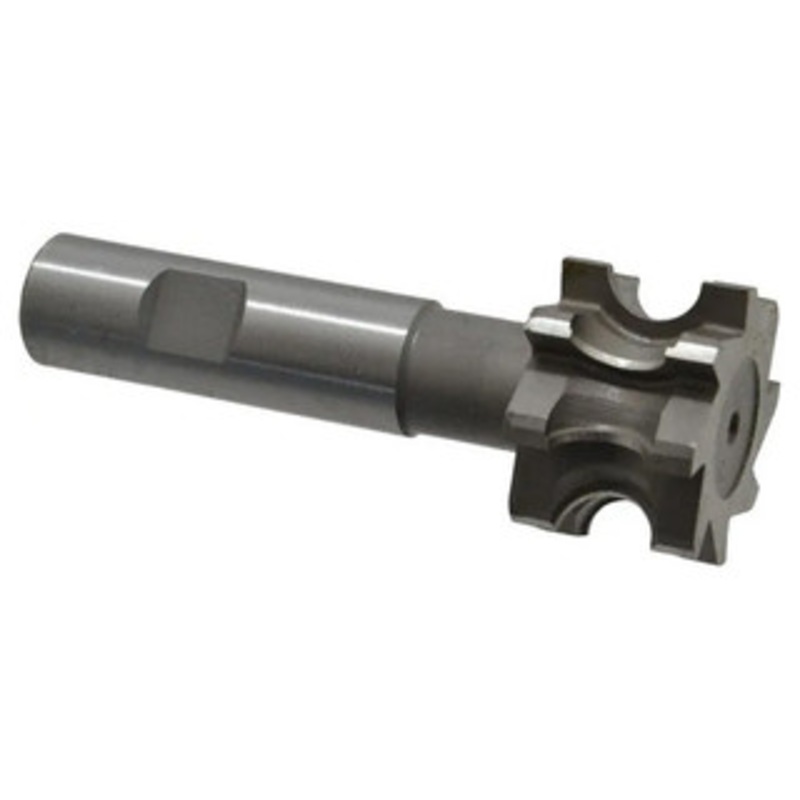

Whitney Tool Concave Radius Milling Cutter #10366, 1/4″ Radius

1/4″ Radius, 1/2″ Circle Diam, 1-1/2″ Cutter Diam, 1″ Cutting Width, Shank Connection, Concave Radius Cutter
3/4″ Shank Diam, 4″ OAL, High Speed Steel, Uncoated, Profile Ground, 8 Teeth, Weldon Flat

Features:

• Made in U.S.A.
• Precision ground
• More teeth for faster cutting
• Better finish possible in many materials with profile ground

Specifications:

Connection Type Shank Radius (Inch) 1/4 Circle Diameter (Decimal Inch) 0.5000 Diameter of Cutter (Inch) 1-1/2 Cutting Width (Inch) 1 Cutting Width (Decimal Inch) 1.0000 Shank Diameter (Inch) 3/4 Overall Length (Inch) 4 Material High Speed Steel Finish/Coating Uncoated Relief Style Profile Ground Number of Teeth 8 Weldon Flat Yes
