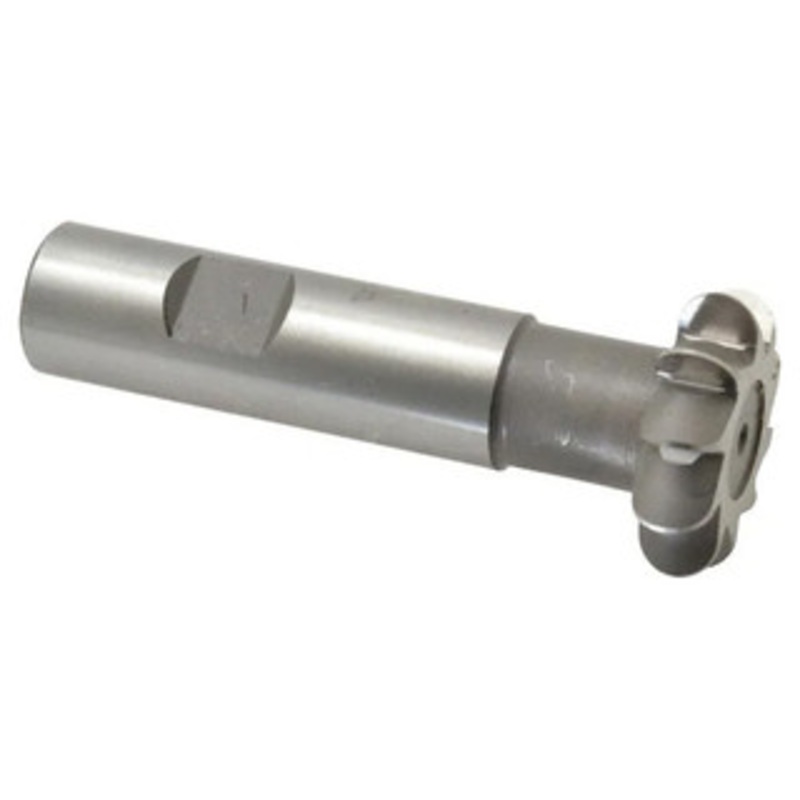

Whitney Tool Convex Radius Milling Cutter #10349, 3/16″ Radius

3/16″ Radius, 3/8″ Circle Diam, 1-3/8″ Cutter Diam, Shank Connection, Convex Radius Cutter
3/4″ Shank Diam, 3-1/2″ OAL, High Speed Steel, Uncoated, Profile Ground, 10 Teeth, Weldon Flat

Features:

• Made in U.S.A.
• Precision ground
• More teeth for faster cutting
• Better finish possible in many materials with profile ground

Specifications:

Connection Type Shank Radius (Inch) 3/16 Circle Diameter (Decimal Inch) 0.3750 Diameter of Cutter (Inch) 1-3/8 Shank Diameter (Inch) 3/4 Overall Length (Inch) 3-1/2 Material High Speed Steel Finish/Coating Uncoated Relief Style Profile Ground Number of Teeth 10 Cutting Width (Inch) 3/8 Weldon Flat Yes
